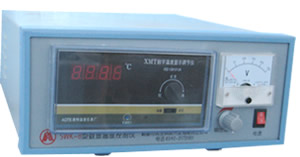

SWK - type B SCR digital temperature controllers

Harmonized System:9032100000

This controller can and high temperature resistance furnace (box), double muffle furnace tube for sulfur furnace, ash melting point determination of electric furnace, or other equipment, realize the automatic control of furnace temperature, in order to adapt to the different rate of temperature control and test the different requirements of temperature.

•  SWK - type B controller using digital display temperature, temperature display clear instructions.

•  use bidirectional thyristor output control switch, long service life, has no shock, no noise, etc.

•  have PID adjustment function, can effectively overcome the temperature overshoot and more accurate temperature control.

•  0 ~ 220V voltage continuous adjustable, can adapt to the requirements of different temperature.

•  Power: AC 220V ± 10%, frequency 50HZ

•  Whole conduction output voltage can be adjusted

•  The maximum allowed a 5KW load.

Thermostat

Temperature controllers link:

KH - 3 fast ash tester

JXL-620 energy-saving fast intelligent muffle furnace

XL - 1/2 type box temperature resistance furnace (muffle furnace)

WSWK-5microcomputer temperature control instrument

Telephone: 0086-392-3313798 fax: 0086-392-2172001

Zip number : 458030

Address: He nan hebi citizens born technology development Co., LTD.
